Steam and Water Sampling

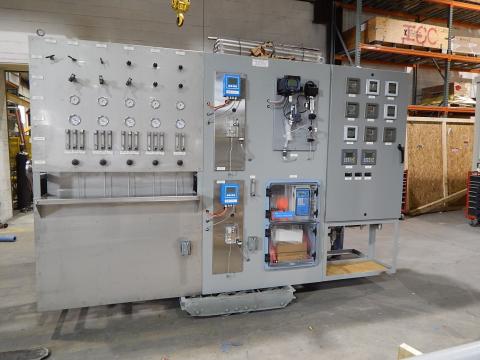

Sample Panels are used to monitor and maintain proper chemistry within the process by taking samples of water, steam and other fluids to analyze for levels of pH, conductivity, silica, sodium, etc. The results of these readings are fed to the plants control center so the process can be adjusted and proper chemical treatment maintained with the goal of normalizing results of the analysis. Our Sampling Panels can range in size and complexity from the most basic single sample line panel with a only a grab sample to one with over 40+ samples and fully automated analysis installed inside a “walk-in” style enclosure with a complete lab all designed and fabricated in our shop. Our standard design is built to be user friendly and have operator safety as the top priority. This Front & Back layout has all instrumentation displays are flush mounted on the panel front face for easy viewing and operation with a full plate, top to bottom and the length of the system that isolates the operator from all high temperature and high pressure components which are mounted on the rear of the panel for operator protection. Based on project specifics and customer requirements we can also fabricate a Front Access design where all equipment and instrumentation is mounted so operation and maintenance can be done by completely front access only.

Why Buy from Johnson March?

• Built to strictly follow the most difficult specifications and project requirements
• A continuous history of global shipments dating back to the 1970’s
• Designed and built with operator safety in mind
• The longest operational lifetime in the industry

Options

Enclosures:

• to fully enclose the Sampling Panel and protect it from it’s surrounding environment.“

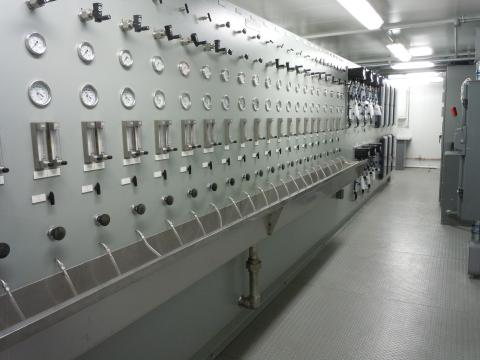

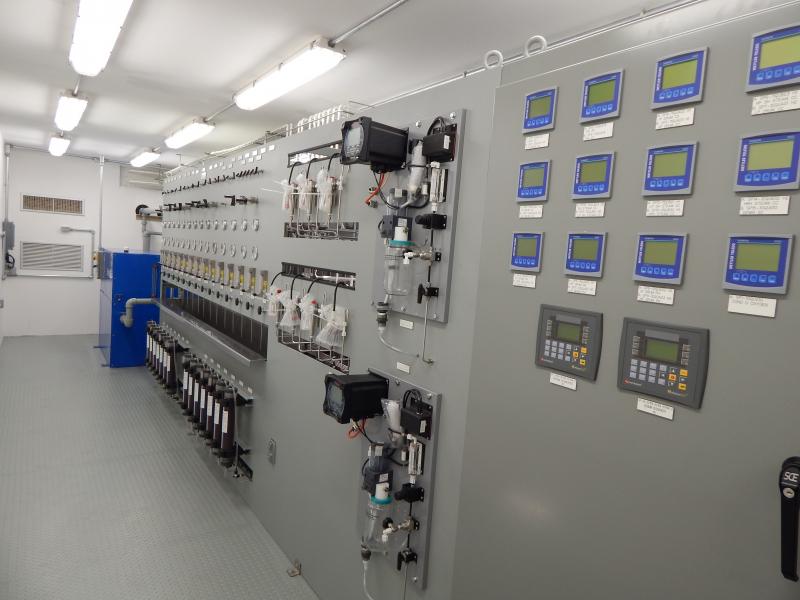

• Walk-in” style or an “Equipment Only” style
• Labs, furniture, showers
• Isokinetic Nozzles
• Hotwell Sampling
• Chillers and Isothermal baths
